| Place of Origin: | China |
|---|---|
| Brand Name: | Artshow |
| Certification: | CE/ROHS |
| Model Number: | WM-240-ARGB |
| Minimum Order Quantity: | 1000pcs |
| Packaging Details: | Color Box |
| Delivery Time: | 25-30 Working Days |
| Payment Terms: | L/C, T/T |
| Pump Head Size: | L65*W65*H60 Mm | Radiator Size: | 120*276*27 Mm |
|---|---|---|---|
| LED SPEC: | LED 3528 | LED QTY: | 120 LED BEADS |
| High Light: | 240MM Computer Case Coolers,ARGB Computer Case Coolers,240MM CPU Liquid Cooler |
||
ARTSHOW Liquid 240MM Mirror ARGB CPU Liquid Cooler All-in-One Liquid Cooling System - AMD & Intel Socket Compatible
Product Name:240 Water cooling radiator - ARGB

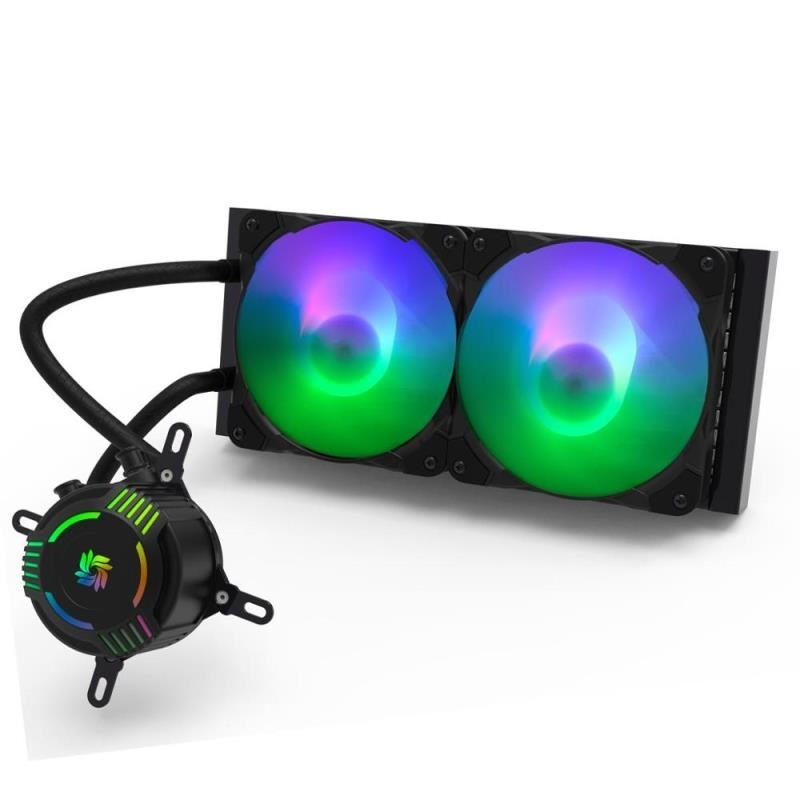

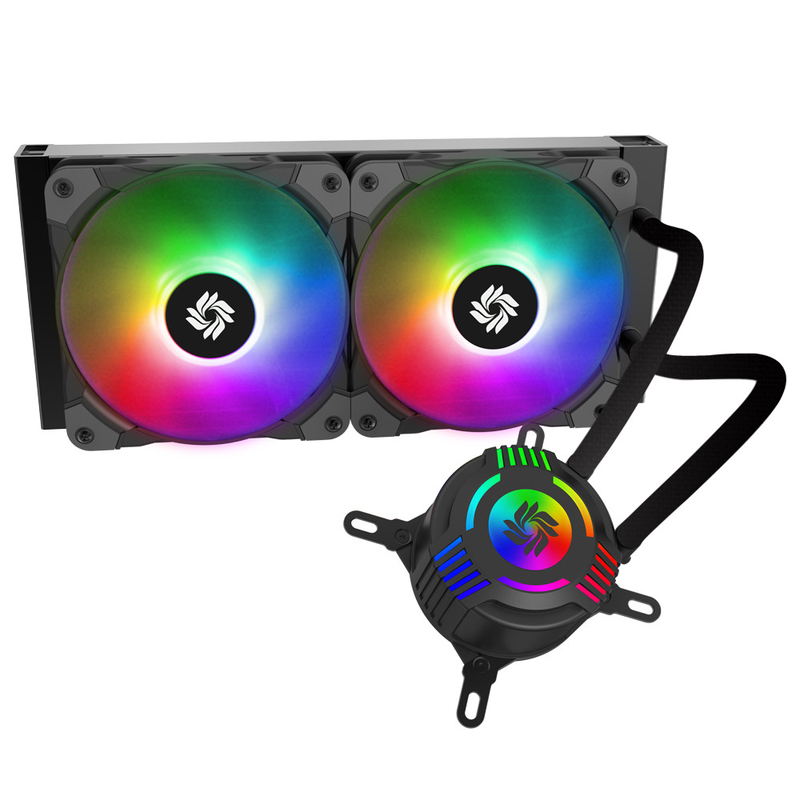

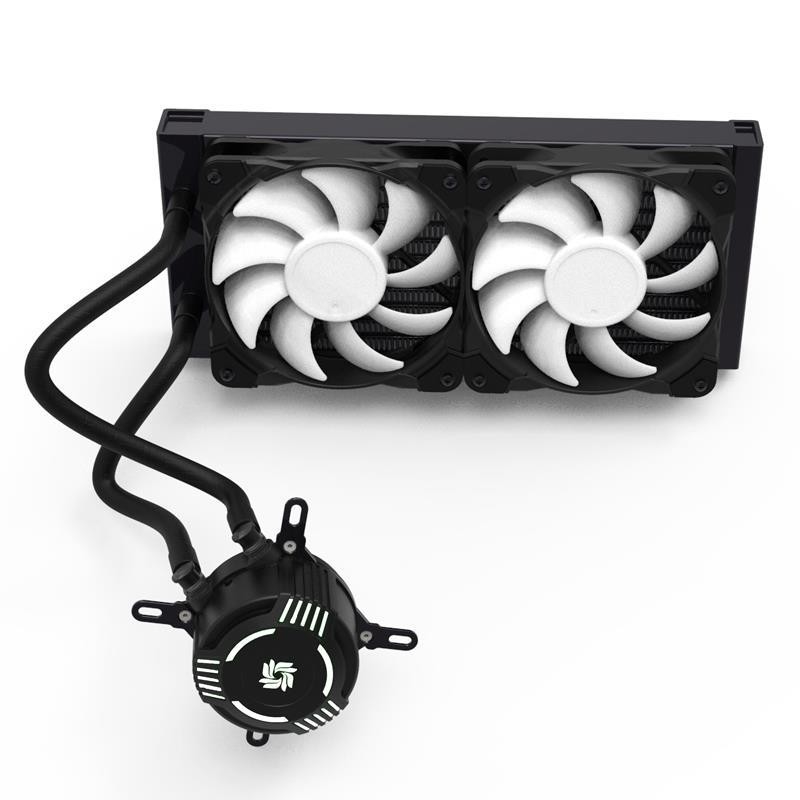

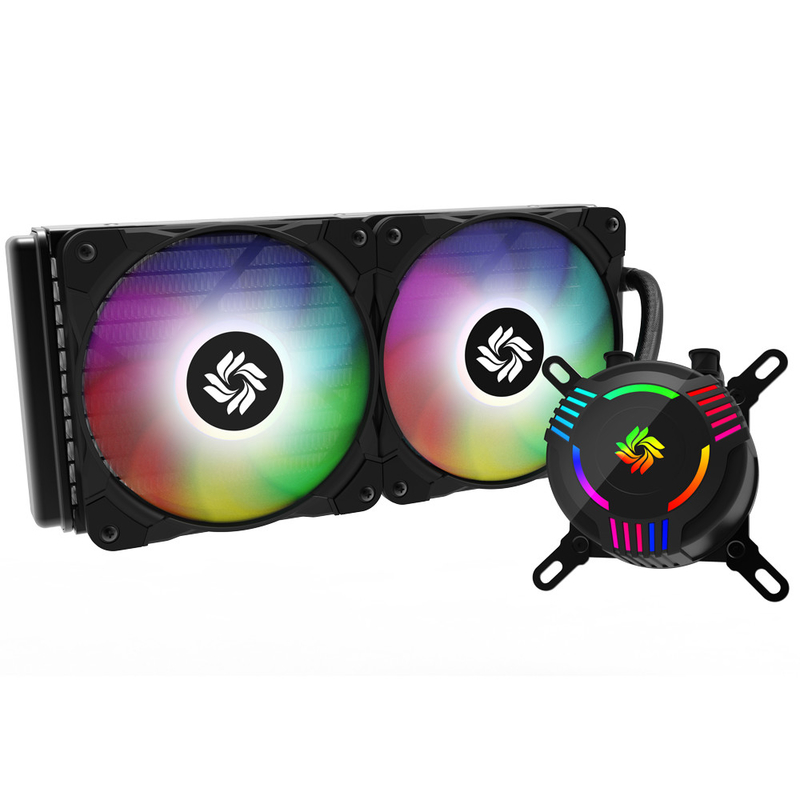

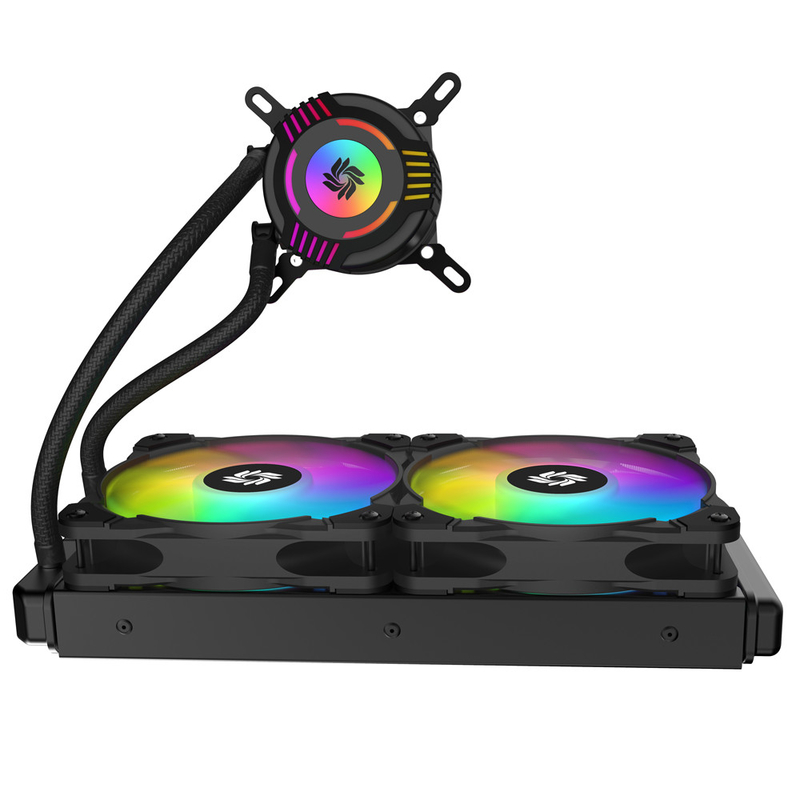

Product Picture
Product Feature:
1.Skive copper base for easy heat conduction
2.Three-phase brushless sensorless motor and driver
3.Disconnect-type impeller design
4.High reliability FEP tubing
5.Low noise design
6.Low rate of evaporation design
7.High heat resistance choice (PPS+40%GF housing)
8.No-rubber and low flow resistance manifold design
9.Customized logo
10.Colorful LED light circle
11.24027 radiator, more efficient heat dissipation
12.ARGB lighting cooling fan,
13.Three button lighting controller with various lighting performance
Specification or Parameters
| Item | Specification or Parameters | ||
| Pump head size | L65*W65*H60 mm | ||
| Radiator size | 120*276*27 mm | ||
| FEP Tubing spec | FEP, L=400 mm | ||
| Heat contacting material | 99.9% copper | ||
| pump bearing | Graphite bearing | ||
| Pump shaft | Ceramics shaft | ||
| Housing | PPS+40%GF | ||
| Impeller poles | 10 Poles | ||
| Stator slots) | 12 slots | ||
| Starting voltage | ＞DC 6V | ||
| Motor type | Three phase brushless sensorless motor | ||
| Rated voltage | DC 12V | ||
| Rated power | 2.8 | ||
| T-rising | 9.7K-11.0K(120W) | only for reference | |
| Acoustical noise) | ＜30dB | ||
| LED SPEC | LED 3528 | ||
| LED QTY | 12PCS | ||
| Working temperature | -10~40°C | ||
| Storage temperature | -20~60°C | ||
| Rated Current | 0.23A±10% MAX | ||
| Speed | 2650±10% RPM | ||
| Pump power wire | UL 1007, 24 AWG, black, bonded, L=300mm | ||
| Three button RGB controller | |||
| Dimension | 46*19*9.5mm | ||
| Rated Voltage | 5.5 V | ||
| Rated Current | 3 A | ||
| Power Input | 4PIN, 12V | ||
| Power Output | 3PIN MALE SOCKET | ||
| RGB Mode | 18 MODES | ||
| LED qnty | 120 LED BEADS | ||
| Cable Spec | 24# BLACK CABLE | ||
| MODEL Description | 18 LIGHT MODES SWITHCHING, LONG PRESS 3 SECONDS FOR TURN OFF, SHORT PRESS 1 SEC FOR TURN ON. | ||
| SPEED Description | 7 TYPES OF SPEED LEVEL | ||
| LIGHT Description | 7 TYPES OF SINGLE LIGHT MODES | ||
| Fan Specification | |||
| Outline | 120*120*25mm | ||
| Rated Voltage | DC12V | ||
| OPERATINGVOLTAGE RANGE | 8~13.2V | ||
| Auto start | YES |
a. Rated Voltage b. 25℃,65% RH |
|
| Tachometer Output | YES | ||
| PWM | YES | ||
| Rated Current |
0% 0.035A±10% 100% 0.24A±10% |
||
| Locked Current | Break protection | ||
| Power Consumption | 2.24W+10%MAX |
|
|
|
Speed 100%
|
0%: 800±80R.P.M 100%:2200±220R.P.M |
||
| Max. Airflow | 65.5CFM(ft3/min) |
|
|
| Max. Static Pressure | 2.34mm-H2O | ||
| Noise Level | 31.1dB(A) |
a. CNS 8753 (Standard) b. ISO 3744 (Test Condition) |
|
| Life | 30,000/hrs 25℃ |
MTBF(Mean Time to Failure) Conf. Level 90% |
|
| No. of Blade | 9 Blades | ||
| Rotating orientation | Anticlockwise | ||
| Suitable socket | |||
| Intel socket | LGA775/115X/1366/2011/2066 (Core i3/i5/i7/i9 CPU) | ||
| AMD socket | FM1/FM2/AM2/AM2+/AM3/AM3+/AM4 CPU | ||
| Accessories | |||
| Part Name | Spec | QTY | |
| Cooling fan | 12025 ARGB | 2 | |
| Back plate | Metal back plate suitable Intel and AMD | 1 | |
| Nut of back plate | Nut of back plate | 4 | |
| INTEL bracket | Left and right | 2 | |
| AMD bracket | Left and right | 2 | |
| Thermal grease | High conduct thermal grease(0.5g) | 1 | |
| Spring nut | Spring nut | 4 | |
| Plastic gasket | Plastic gasket | 8 | |
| Metal gasket | Metal gasket | 4 | |
| 2011 two side thread bolt | LGA 2011 two side thread bolt | 4 | |
| Long bolt | Long bolt with separate plastic pole | 4 | |
| Fan screw | Fan screw | 8 | |
| Radiator screw | Radiator screw | 8 | |
| RGB Controller | L=600mm, big 4pin input, output 3pin male socket | 1 | |
| RGB 1to3 | RGB wire one to three | 1 | |
| RGB cable to mainboard | 3pin male socket to 4pins | 1 | |
| Transfer cable | Fan wire one to three | 1 | |
| Unser manual | yes | 1 | |
| Packing description | |||
| Net weight | 1.4kg | ||
| Gross weight | 1.95KG | ||
| Retail box size | L325*W225*H145MM | ||
| Packing type | Colorbox + Carton | ||
| Carton size (6 sets) | L480*W358*H470MM | ||
| Unit/carton | 6 | ||
| Pallet size(mm) | 1219MM X 1016MM | ||
| Carton/ pallet | 24 | ||
| Warranty | |||
| Warranty | 1 year | ||
